Rod end compression force transducer 0-50kN press force measurement

Product Categories
Forsentek Co., Limited
Contact Now

Rod end compression force transducer 0-50kN press force measurement

  • 1
  • 2

Place of Origin : China

Brand Name : Forsentek

Model Number : FCL

MOQ : 1pc

Packaging Details : Carton

Delivery Time : 3~25 working days

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 2000pcs/month

Usage : Tension/Compression load measurement

Theory : Strain gauge load cell

Output : Analog Sensor

Contact Now

Rod end compression force transducer 0-50kN Compression force measurement

Features

  • Stainless steel construction,inline structure
  • Strain gauge technology,analog output
  • 0-5V or 4-20mA output available through external signal amplifier
  • Compression force measurement

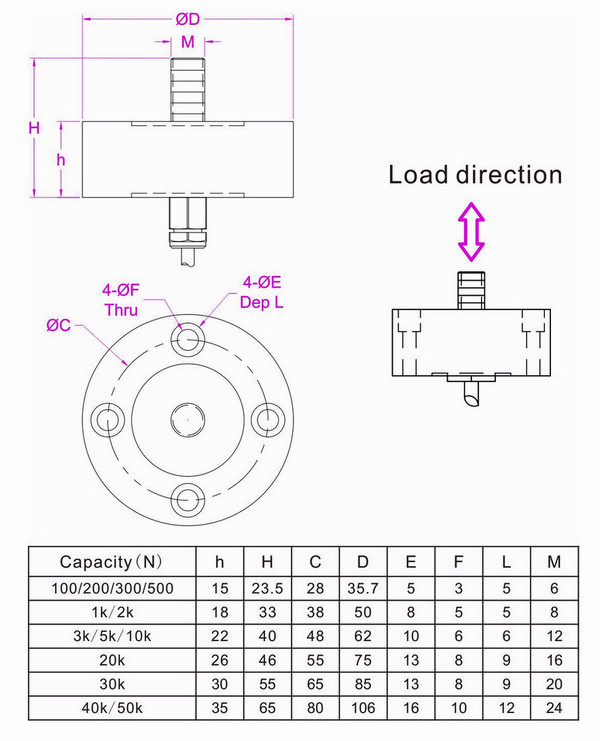

Dimensions

Rod end compression force transducer 0-50kN press force measurement

Specifications

Capacity 10kg 20kg 30kg 50kg 100kg 200kg 500kg 1t 2t 3t 5t
Rated output 1.5mV/V
Excitation 3-15V
Zero balance ±0.05mV/V
Nonlinearity ±0.3% R.O.
Hysteresis ±0.3% R.O.
Nonrepeatability ±0.1% R.O.
Creep(5min) ±0.1% R.O.
Safe overload 150% F.S.
Ultimate overload 200% F.S.
Compensated temperature 0...+40oC
Operating temperature -20...+60oC
Temperature shift zero ±0.03% R.O./oC
Temperature shift span ±0.03% R.O./oC
Input resistance 380±30 ohms
Output resistance 350±10 ohms
Insulation resistance >5000M ohms
Ingress protection IP65
Material of element Stainless steel
Cable Ø3*2000mm 4-core shielded cable

Wiring code

 Red--E+ Black--E- Green--S+ White--S-

Compression load cell force sensor

Rod end compression force transducer 0-50kN press force measurement
