Rotary torque measurement device 10NM 20M 30NM 50NM 100NM torque sensor

Rotary torque measurement device torque sensor

10NM 20NM 30NM 50NM 100NM 200NM 300NM 500NM

• CE approved
• Strain gauge technology,analog output
• Shaft to shaft structure,easy to install
• Both clockwise and counterclockwise measurement
• Up to 4000 r/m
• Rotating shaft torque measurement,motor torque measurement

Dimensions


Specifications

Rotary torque measurement sensor torque transducer

A torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal which is proportional to the applied torque.The acting torsion causes deformation of the measuring element,the bonded strain gage deforms accordingly which will cause the resistance change of the wheatstone bridge,under constant power supply, the output signal between Sig+ and Sig- will change proportionally,thus the moment can be measured by measuring the output signal from the transducer.The output range of FY01 is normally within -20mV...+20mV, signal amplification may be required for most applications, a signal conditioner can be used to get -5~5V, 0-10V or 4-20mA output for easy data processing.Rotary torque sensor is designed to measure rotating torque like motor torque, rotating shaft torque,mixture torque,etc..Rotary torque transducer can also be used to measure static torque which is also known as reaction torque.

Click here to download datasheet

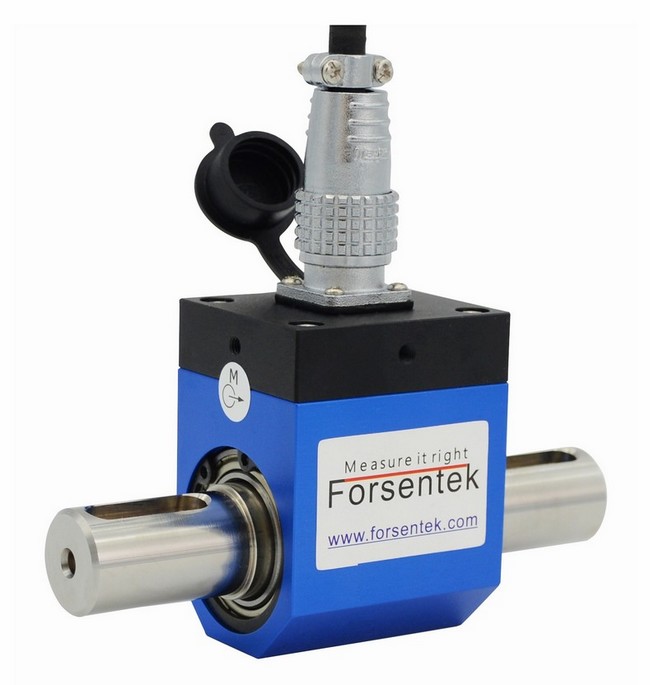

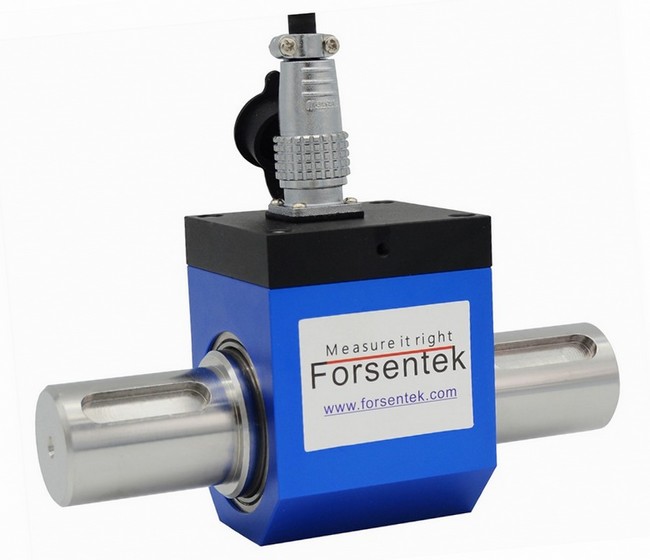

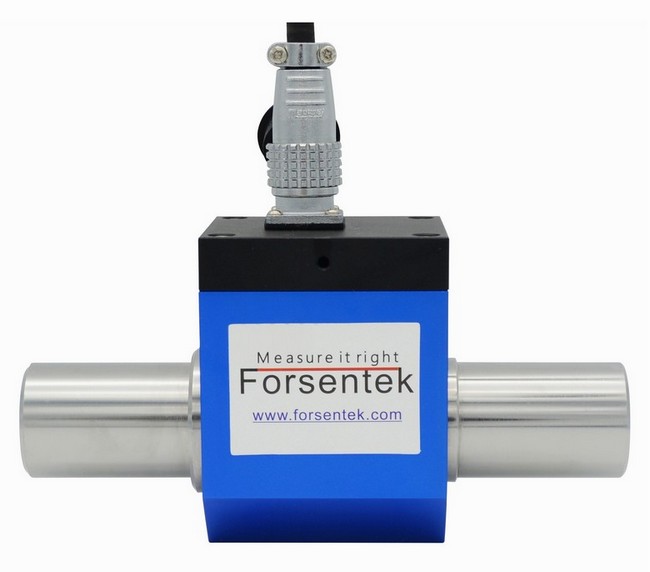

Rotary torque measurement device 10NM 20M 30NM 50NM 100NM torque sensor Images
