Name: Rod end load cell tension and compression load cell
Brand: Forsentek
Price: 1 USD

Place of Origin : China

Brand Name : Forsentek

Model Number : FL30

Load direction : Tension and compression

Capacity : 2KN/3KN/5KN/10KN/20KN

MOQ : 1pc

Packaging Details : Carton

Delivery Time : 3~25 working days

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 3000pcs/month

Usage : Tension compression force measurement

Theory : Resistance Sensor

Output : Analog Sensor

Contact Now

Rod end load cell tension and compression load cell
Features

Applications

Specifications

Rated capacity	2KN 3KN 5KN 10KN 20KN
Rated output	1.5mV/V
Excitation	5-15V
Zero balance	±2% of R.O.
Nonlinearity	±1% of R.O.
Hysteresis	±1% of R.O.
Nonrepeatability	±0.3% of R.O.
Creep(30min)	±0.1% of R.O.
Safe overload	150% of F.S.
Ultimate overload	200% of F.S.
Compensated temperature	-10...+40^oC
Operating temperature	-20...+60^oC
Temperature shift zero	±0.01% R.O./^oC
Temperature shift span	±0.01% R.O./^oC
Input resistance	385±30 ohms
Output resistance	350±5 ohms
Insulation resistance	>5000M ohms
Ingress protection	IP66
Material of element	Stainless steel
Cable	Ø5*1800mm(Longer cable available)
Wiring code	Tension@ Red--Exc+ Black--Exc- Green--Sig+ White--Sig-

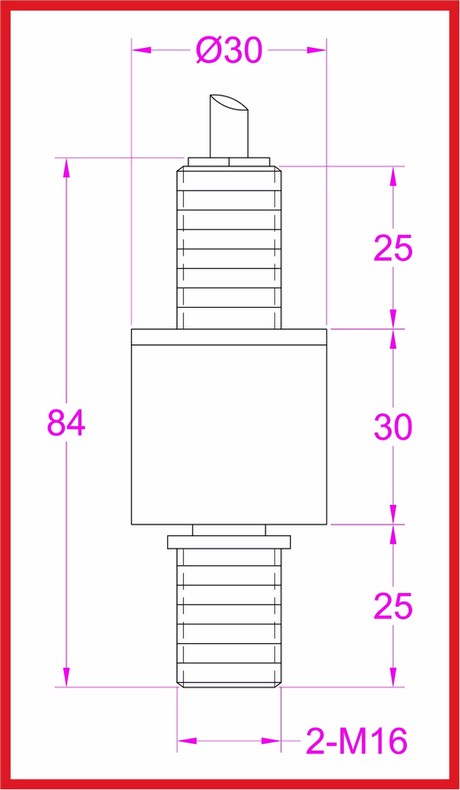

Dimensions

Ordering code: FL30-2KN, FL30-3KN, FL30-5KN, FL51-10KN, FL51-20KN

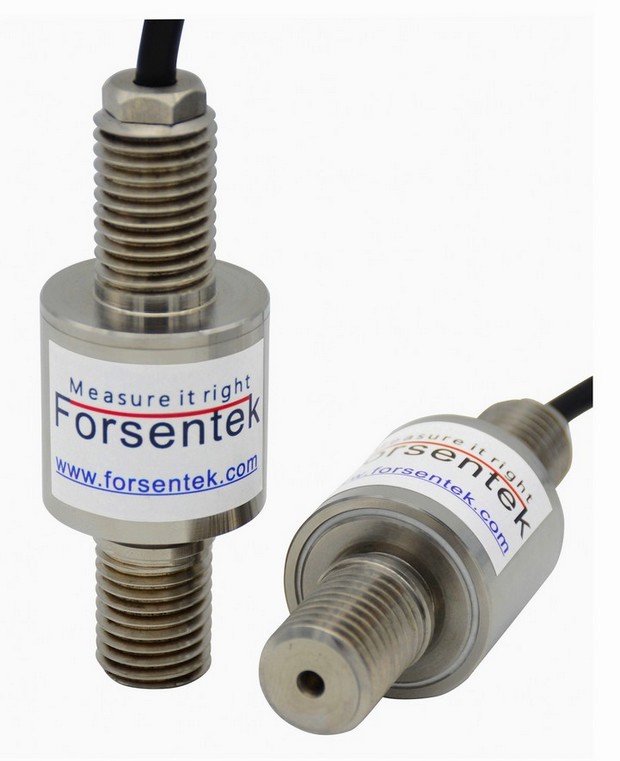

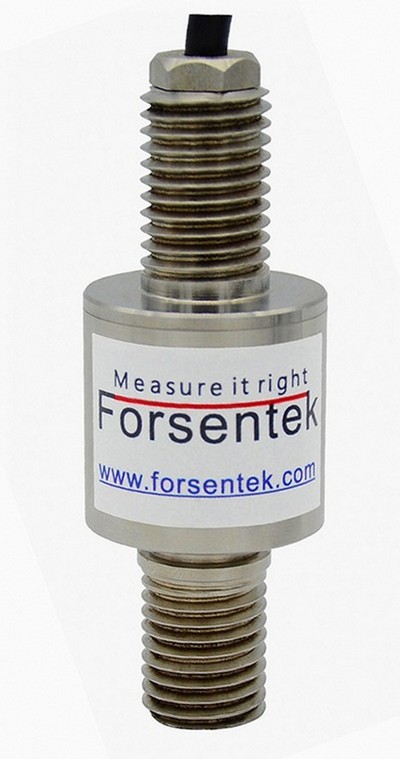

Rod end load cell tension and compression load cell Images
