Weight measurement sensor for weight measurements

Name: Weight measurement sensor for weight measurements
Brand: Forsentek
Price: 1 USD

China Weight measurement sensor for weight measurements wholesale

Place of Origin : China

Brand Name : Forsentek

Model Number : FNM

Capacity : 15kg 20kg 30kg 50kg 100kg 200kg

MOQ : 2pcs

Packaging Details : Carton

Delivery Time : 3~25 working days

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 10000pcs/month

Usage : Load measurement,weight measurements

Theory : Resistance Sensor

Output : Analog Sensor

Contact Now

Weight measurement sensor for weight measurements

Features

Aluminum construction,small size
Strain gauge technology,high accuracy
6-wire connection,temperature compensated
Suitable for platform sizes up to 400*400(mm)
Widely used for price computing scales,counting scales,bench scales.etc.

Dimensions

Weight measurement sensor for weight measurements

Specifications

Capacity	15kg 20kg 30kg 50kg 100kg 200kg
Rated output	2.0±5%mV/V
Excitation	5-15V
Zero balance	±5% R.O.
Nonlinearity	±0.015% R.O.
Hysteresis	±0.01% R.O.
Nonrepeatability	±0.01% R.O.
Creep(30min)	±0.02 R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temperature	-10...+40^oC
Operating temperature	-20...+60^oC
Temperature shift zero	±0.02% R.O./10^oC
Temperature shift span	±0.02% R.O./10^oC
Input resistance	405±10 ohms
Output resistance	350±3 ohms
Insulation resistance	>2000M ohms
Ingress protection	IP65
Material of element	Aluminum alloy
Cable	Ø6*1500mm 6-wire (Longer cable available)
Wiring code	Red--E+ Blue--Sen+ Black--E- Yellow--Sen- Green--S+ White--S-

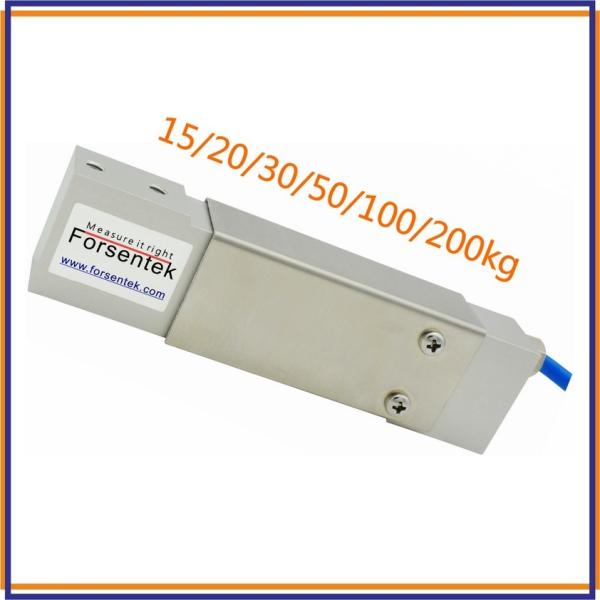

Weight measurement sensor 200kg 100kg 50kg 30kg 20kg 15kg

Weight measurement sensor for weight measurements

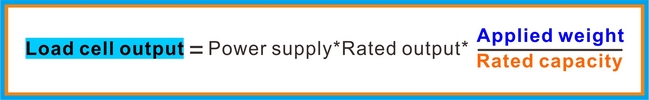

A strain gauge based weight sensor is an eletronic device that converts weight into analog output which is proportional to the applied weight,thus the weight can be measured by measuring the analog output signal from the load cell.The output signal of a load cell can be calculated according to to below formula:

Weight measurement sensor for weight measurements

Power supply range: 3-15V

Rated output range: 1.0~2.0mV/V

Within the rated capacity,a load cell outputs 0~30mV signal which is proportional to the applied weight.For different applications,load cell signal amplifier can be used to amplify the mV signal into 0-5V/0-10V/4-20mA for easy signal process.High accuracy AD converter is also an option.
