Name: Reactioin torque sensor 10000NM 5000NM 2000NM 1000NM torque transducer
Brand: Forsentek
Price: 1 USD

Place of Origin : China

Brand Name : Forsentek

Model Number : FT03

MOQ : 1pc

Packaging Details : 1pc/box

Delivery Time : 3~20 working days

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 2650pcs/month

Certification : CE

Usage : Torque measurement

Type : Reaction torque transducer

Output : Analog Sensor

Mounting : Flange-to-flange

Contact Now

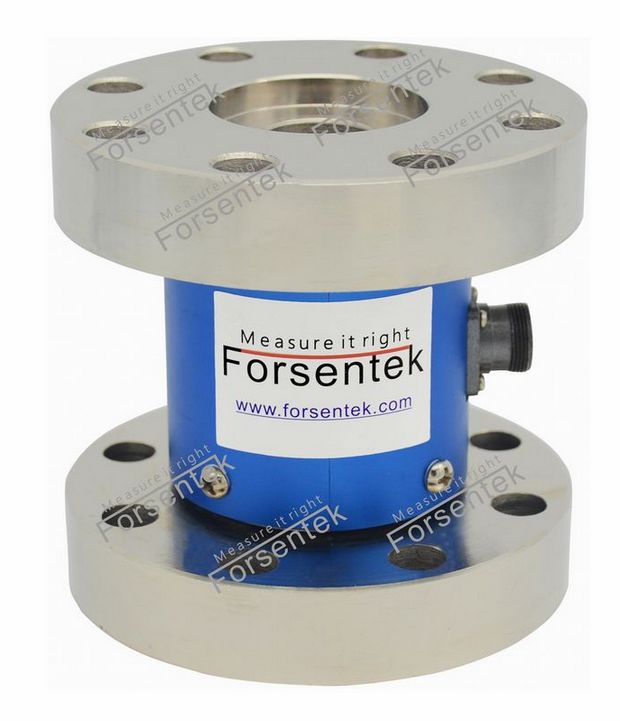

Reaction torque sensor 10000NM 5000NM 2000NM 1000NM torque transducer

Features

Reactioin torque sensor 10000NM 5000NM 2000NM 1000NM torque transducer
Dimensions

Specifications

Capacity	200NM 300NM 500NM 1000NM 2000NM 3000NM 5000NM 10000NM 20000NM 30000NM 40000NM 50000NM 60000NM 100000NM
Rated output	1.5mV/V
Excitation	3-15V
Zero balance	±2% R.O.
Nonlinearity	±0.25% R.O.
Hysteresis	±0.25% R.O.
Nonrepeatability	±0.1% R.O.
Creep(10min)	±0.1% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temperature	-10...+40^oC
Operating temperature	-20...+60^oC
Temperature shift zero	±0.02% R.O./^oC
Temperature shift span	±0.02% R.O./^oC
Input resistance	700±100 ohms
Output resistance	700±10 ohms
Insulation resistance	>5000M ohms
Ingress protection	IP62
Material of element	Alloy steel
Cable	Ø5.5*3000mm 4-core shielded
Wiring code	Red--E+ Green--E- Yellown--S+ White--S-

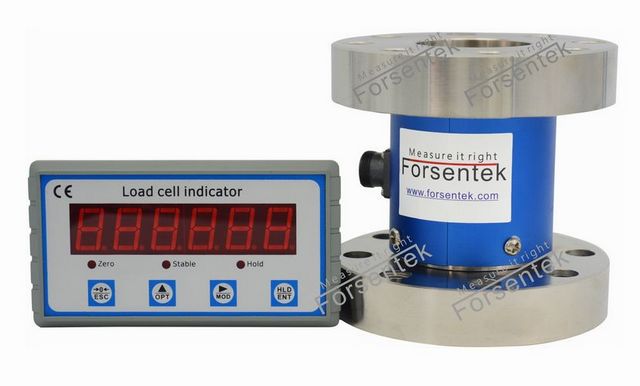

Reaction torque transducer 0-100kNM torque measurement transducer

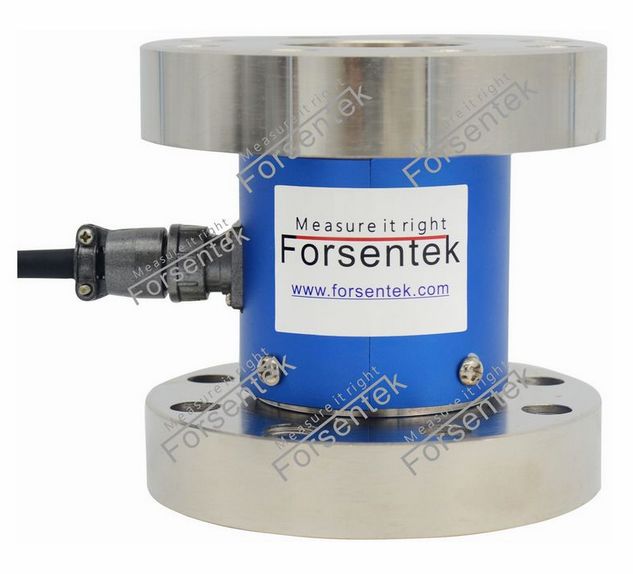

Reactioin torque sensor 10000NM 5000NM 2000NM 1000NM torque transducer

Reactioin torque sensor 10000NM 5000NM 2000NM 1000NM torque transducer Images
