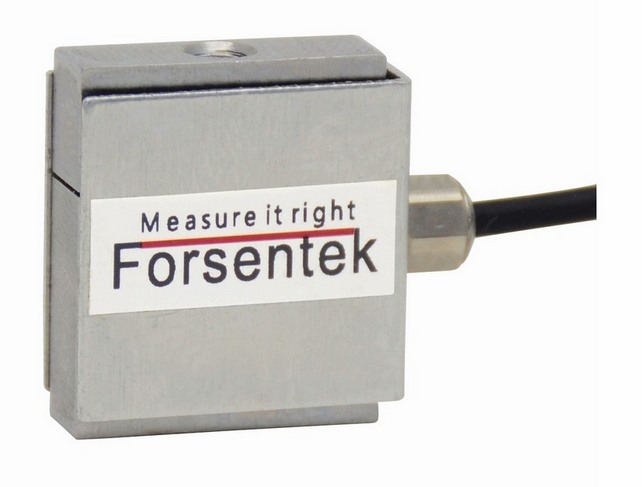

Micro force sensor 10N 20N 50N 100N 200N 300N 500N 1KN force transducer

Name: Micro force sensor 10N 20N 50N 100N 200N 300N 500N 1KN force transducer
Brand: Forsentek
Price: 1 USD

China Micro force sensor 10N 20N 50N 100N 200N 300N 500N 1KN force transducer wholesale

Place of Origin : China

Brand Name : Forsentek

Model Number : FSSM

MOQ : 1pc

Packaging Details : Carton

Delivery Time : 3~25 working days

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 3200pcs/month

Certification : CE

Usage : Force measurement

Type : Miniature force sensor

Output : Analog transducer

Capacity : 10N 20N 50N 100N 200N 300N 500N 1000N

Force measurement direction : Tension and compression

Female thread : M3/M4

Contact Now

Micro force sensor 10N 20N 50N 100N 200N 300N 500N 1KN force transducer

Micro force sensor 10N 20N 50N 100N 200N 300N 500N 1KN force transducer
Features

Miniature load cell tension compression
Strain gauge technology,analog output
Pull and push force measurement

Specifications

Capacity	10N / 1kgf / 2.2lbf 20N / 2kgf / 4.4 lbf 50N / 5kg / 11.2lb 100N / 10kgf / 22.4lbf 200N / 20kgf / 45 lbs 300N / 30kg / 67lbf 500N / 50kgf / 110 lb 1kN / 100kg / 220 lb
Rated output	2.0mV/V
Excitation	3-12V
Zero balance	±0.05mV/V
Nonlinearity	±0.1% R.O.
Hysteresis	±0.1% R.O.
Nonrepeatability	±0.05% R.O.
Creep(5min)	±0.1% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temperature	-10...+40^oC
Operating temperature	-20...+60^oC
Temperature shift zero	±0.03% R.O./^oC
Temperature shift span	±0.02% R.O./^oC
Input resistance	380±30 ohms
Output resistance	350±5 ohms
Insulation resistance	>2000M ohms
Ingress protection	IP62
Material of element	Stainless steel
Cable	Ø2*4000mm 4-core shielded cable
Wiring code	Compression@ Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal-

Micro force sensor miniature s beam load cell LFS 270

Micro force sensor 10N 20N 50N 100N 200N 300N 500N 1KN force transducer

Dimensions

Micro force sensor 10N 20N 50N 100N 200N 300N 500N 1KN force transducer
Ordering Code:
FSSM-10N, FSSM-20N, FSSM-50N, FSSM-100N, FSSM-200N, FSSM-300N, FSSM-500N,FSSM-1kN
