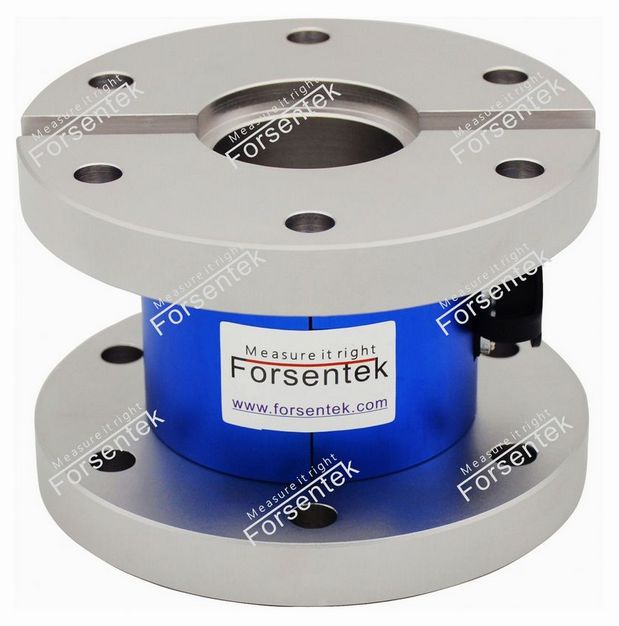

Hollow flange torque sensor FTF features a flange-to-flange mounting with a center thru-hole design.Torque cell FTF offers 10NM / 20NM / 30NM / 50NM / 100NM / 200NM / 300NM / 500NM / 700NM /1000NM ten measuring ranges to choose from,high accuracy with 0.2% non-linearity of the full scale.Torquemeter FTF is capable of meauring torque in both clockwise and anticlockwise direction,applicable for both reaction torque measurement and rotating torque measurement where inserting an extra part between the driving and driven elements is impracticable,the rotating shaft can pass through the through hole located at the center of the torque transducer,which enables measurement of rotating torque without influence of the rotating speed.Typical applications of torque meter FTF are for example torque measurement of pumps,drilling rigs,etc., actuator torque test, stirring torque control and so on.Here are some advantages of measuring rotating torque using hollow torque transducers compared to rotary torque sensors:

• Less expensive.
• Tolerating higher axial load.
• With no limits on the rotating speed.
• Taking up less space due to their short length.
• More durable since no rotating parts are involved.
• More flexible in terms of customization.

Dimensions

Specifications

Hollow type torque meter flange to flange reaction torque sensor

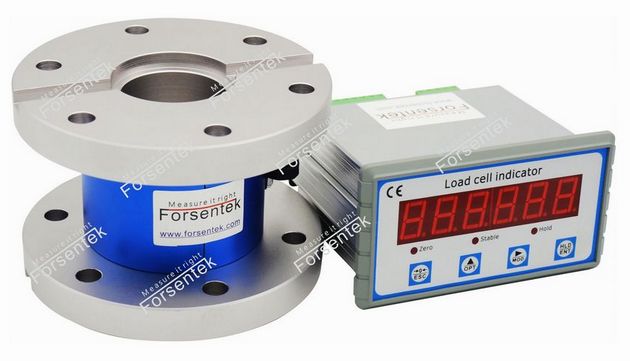

Reaction torque sensor is a transducer that converts a torsional mechanial input into an electrical output signal. Torque meter can be used to display the torque value.Digital indicator FPT is integrated with high accuracy 24-bit ADC,up to 960Hz sampling speed make it suitable for both static and dynamic measurement.FPT also supports RS485/RS232 communication interface and 0-10V/0-5V/4-20mA amplified signal output which proportional to the measured torque.

Click here to download datasheet
