Reaktionsdrehmomentsensor 20NM-500NM Drehmomentsensor statisch

Name: Reaktionsdrehmomentsensor 20NM500NM Drehmomentsensor statisch
Brand: Forsentek
Price: 1 USD

China Reaktionsdrehmomentsensor 20NM-500NM Drehmomentsensor statisch wholesale

Brand Name : Forsentek

Model Number : FT04

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 2000pcs/month

Delivery Time : 3~20 working days

Packaging Details : 1pc/box

Usage : Stationary torque measurement

Theory : Strain gauge torque sensor

Output : Analog transducer

Capacity : 500NM 300NM 200NM 100NM 50NM 20NM

Contact Now

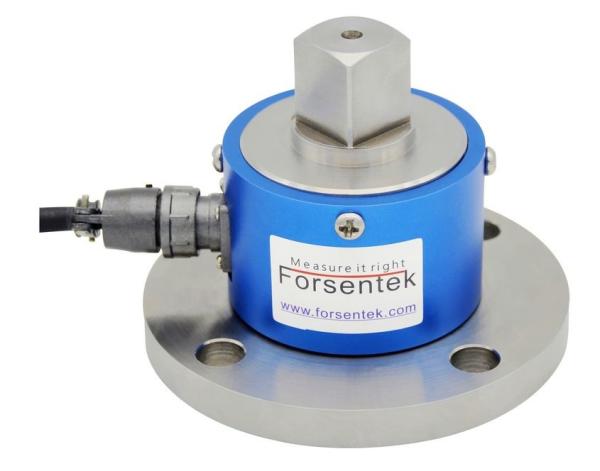

Reaktionsdrehmomentsensor 20NM-500NM

Drehmomentsensor statisch

Reaktionsdrehmomentsensor 20NM-500NM Drehmomentsensor statisch

Features

Stainless steel construction
Square drive to flange design,easy to install
Strain gauge technology,high accuracy
Non-rotating torque measurement

Reaktionsdrehmomentsensor 20NM-500NM Drehmomentsensor statisch
Specifications

Capacity	500NM 300NM 200NM 100NM 50NM 20NM
Rated output	1.5mV/V
Excitation	3-15V
Zero balance	±2% R.O.
Nonlinearity	±0.2% R.O.
Hysteresis	±0.2% R.O.
Nonrepeatability	±0.1% R.O.
Creep(10min)	±0.1% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temperature	-10...+40^oC
Operating temperature	-20...+60^oC
Temperature shift zero	±0.01% R.O./^oC
Temperature shift span	±0.01% R.O./^oC
Input resistance	350±30 ohms
Output resistance	350±10 ohms
Insulation resistance	>5000M ohms
Ingress protection	IP60
Material of element	Stainless steel
Cable	Ø5*3000mm 4-core shielded cable
Wiring code	Clockwise@ Red--E+ Black--E- Green--S+ White--S-

Statische Drehmomentsensoren 20NM-500NM Drehmoment messen

Static torque sensor FT03 is made of stainless steel based on strain gauge technology,,square drive to flange mounting,suitable for reaction torque measurement in both clockwise and counterclockwise direction,widely used to calibrate torque wrenches.
Reaktionsdrehmomentsensor 20NM-500NM Drehmomentsensor statisch

Dimensions(Unit in "mm")

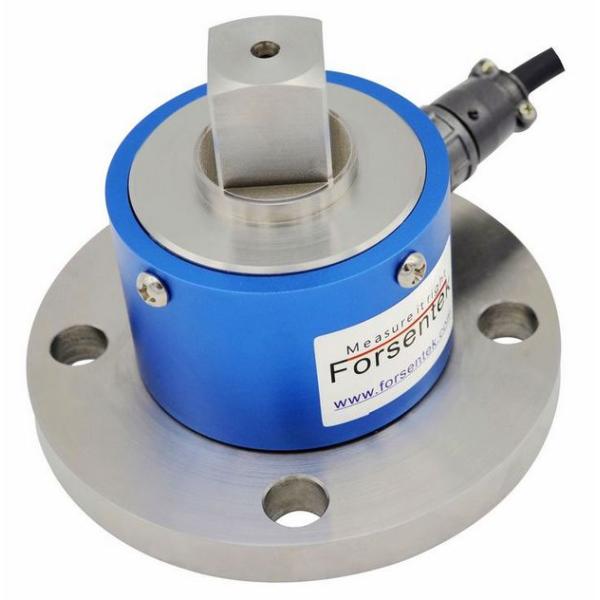

Reaktionsdrehmomentsensor 20NM-500NM Drehmomentsensor statisch Images
