Miniature Force Sensor 50N 100N 200N 300N 500N Micro Compression Transducer

Name: Miniature Force Sensor 50N 100N 200N 300N 500N Micro Compression Transducer
Brand: Forsentek
Price: 1 USD

China Miniature Force Sensor 50N 100N 200N 300N 500N Micro Compression Transducer wholesale

Brand Name : Forsentek

Model Number : FC8E

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 3300pcs/month

Delivery Time : 3~20 working days

Packaging Details : Carton

Certification : CE

Usage : Compression force measurement

Type : Smallese compression load cell

Output : Analog Sensor

Capacity : 50N 100N 200N 300N 500N

Sensor diameter : 8mm

Contact Now

Miniature force sensor 50N 100N 200N 300N 500N

Miniature Force Sensor 50N 100N 200N 300N 500N Micro Compression Transducer

Features

Stainless steel construction

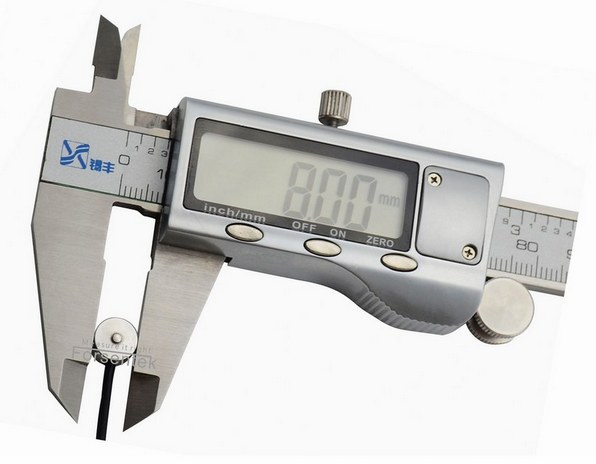

Miniature load cell with 8mm outer diameter
High output resistance,low heat emmision
Compression force measurement

Applications

Clamping force measurement
Force overload protection
Load distribution measurement
Pressing die force measurement
Auto equipment
Medical divices
Assembly line

Specifications

Capacity	50N 100N 200N 300N 500N
Rated output	1.0 mV/V
Excitation	3-8V
Zero balance	±0.1mV/V
Nonlinearity	±1% R.O.
Hysteresis	±1% R.O.
Nonrepeatability	±0.5% R.O.
Creep(5min)	±0.2% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temperature	-10...+40^oC
Operating temperature	-20...+60^oC
Temperature shift zero	±0.05% R.O./^oC
Temperature shift span	±0.05% R.O./^oC
Input resistance	>500 ohms
Output resistance	>500 ohms
Insulation resistance	>2000M ohms
Ingress protection	IP64
Material of element	Stainless steel
Cable	Ø2*4000mm 4-core shielded
Wiring code	Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal-

Dimensions(Unit in "mm")
Miniature Force Sensor 50N 100N 200N 300N 500N Micro Compression Transducer
Ordering Code: FC8E-50N FC8E-100N FC8E-200N FC8E-500N

Click here to download datasheet
