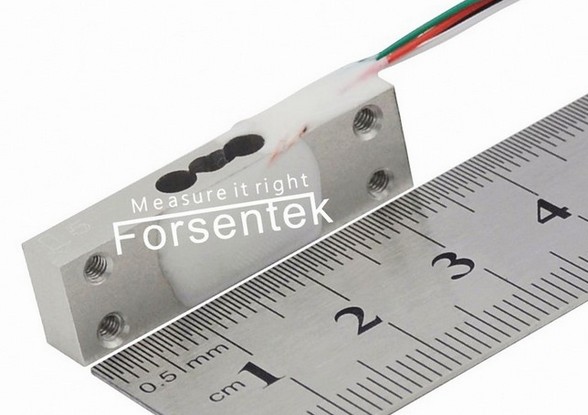

Arduino small load cell 1kg 2kg 3kg 5kg 10kg small load sensor

Name: Arduino small load cell 1kg 2kg 3kg 5kg 10kg small load sensor
Brand: Forsentek
Price: 1 USD

China Arduino small load cell 1kg 2kg 3kg 5kg 10kg small load sensor wholesale

Brand Name : Forsentek

Model Number : FMZK

Place of Origin : China

MOQ : 5pcs

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 50200pcs/month

Delivery Time : 3~25 working days

Packaging Details : Carton

Certification : CE

Usage : Weight measurement

Type : Small loadcell

Output : Analog Sensor

Capacity : 0-100N(0-10kg)

Contact Now

Arduino small load cell 1kg 2kg 3kg 5kg 10kg small load sensor

Miniature weight sensor FMZK is strain gauge based to deliver 1.0mV/V output from full wheatstone bridge. Small load sensor FMZC offers 0.5kg / 1kg / 2kg / 3kg / 5kg / 6kg / 10kg seven measuring ranges to choose from,high accuracy with maximum 0.05% non-linearity of the full capacity.The 1000 ohms resistance strain gauges used are more energy-efficient compared to common 350 ohms gauges.The compact size and aluminum construction makes FMZK weighs only about 5.3 grams which makes it suitable for portable weighing devices.Small size weight transducer FMZK offers a perfect mixture of small size,high accuracy and low cost,which makes loadcell FMZK suitable for weight monitoring in consumer electronics.You may find micro load sensor FMZK applicable for home appliances, force simulators, process control, robotics, automotive and so on. Forsentek is also capable of and willing to provide custom made service according to client's specific requirements if you cannot find suitable weight/load measurement devices from the standard product portfolio.

Arduino small load cell 1kg 2kg 3kg 5kg 10kg small load sensor

Specifications

Rated capacity	0.5kg / 5N / 1.1lb 1kg / 10N / 2.2 lb 2kg / 20N / 4.4lb 3kg / 30N / 6.6 lb 5kg / 50N / 11 lb 6kg / 60N / 13.2lb 10kg / 100N / 22 lb
Rated output	1.0 mV/V
Excitation	3-10 V
Zero balance	±0.1mV/V
Nonlinearity	±0.05% of R.O.
Hysteresis	±0.05% of R.O.
Nonrepeatability	±0.05% of R.O.
Creep(3min)	±0.05% of R.O.
Safe overload	120% of F.S.
Ultimate overload	200% of F.S.
Compensated temperature	0...+40^oC
Operating temperature	-10...+60^oC
Temperature shift zero	±0.03% of R.O./^oC
Temperature shift span	±0.02% of R.O./^oC
Input resistance	1000±100 ohms
Output resistance	1000±10 ohms
Insulation resistance	>2000M ohms
Ingress protection	IP62
Material of element	Aluminum alloy
Cable	32AWG*170mm(Longer cable available)
Wiring code	Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal-

Arduino small load cell 1kg 2kg 3kg 5kg 10kg small load sensor

Small size weight sensor FMZK is a transducer that converts mechanical force into electrical signal proportional to the applied force or weight.The measured load or force causes deformation of the measuring element(elastic body),the bonded strain gauge deforms accordingly which will cause the impedance variation of the wheatstone bridge,under constant power supply, the output signal changes proportionally, thus the weight or force can be measured by measuring the output signal from the load cell.

Arduino small load cell 1kg 2kg 3kg 5kg 10kg small load sensor

Dimensions

Arduino small load cell 1kg 2kg 3kg 5kg 10kg small load sensor

Click here to download datasheet
