Miniature force sensor 0-1000N tension compression force transducer

Name: Miniature force sensor 01000N tension compression force transducer
Brand: Forsentek
Price: 1 USD

China Miniature force sensor 0-1000N tension compression force transducer wholesale

Brand Name : Forsentek

Model Number : FSSM

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 5000pcs/month

Delivery Time : 3~25 working days

Packaging Details : Carton

Certification : CE

Usage : Force measurement

Type : Micro force sensor tension compression

Output : Analog Transducer

Capacity : 10N 20N 50N 100N 200N 300N 500N 1000N

Structure : Miniature s beam load cell

Threaded hole : M3/M4

Contact Now

Miniature force sensor 0-1000N tension compression force transducer

Features

Miniature s beam load cell,very compact size
Strain gauge technology,high accuracy
Tension compression force measurement

Miniature force sensor 0-1000N tension compression force transducer

Ordering code

Part No.	Force measuring range	Force measurement direction
FSSM-10N	0-10N / 0-1kgf	Tension/compression
FSSM-20N	0-20N / 0-2kgf
FSSM-50N	0-50N / 0-5kgf
FSSM-100N	0-100N / 0-10kgf
FSSM-200N	0-200N / 0-20kgf
FSSM-300N	0-300N / 0-30kgf
FSSM-500N	0-500N / 0-50kgf
FSSM-1kN	0-1000N / 0-100kgf

Specifications

Capacity	10N / 1kg / 2.2 lbf 20N / 2kg / 4.4 lbf 50N / 5kg / 10 lbf 100N / 10kg / 20 lbf 200N / 20kg / 45 lbf 300N / 30kg / 65 lbf 500N / 50kg / 110 lbf 1kN / 100kg / 220 lbf
Rated output	2.0mV/V
Excitation	3-12V
Zero balance	±0.05mV/V
Nonlinearity	±0.1% R.O.
Hysteresis	±0.1% R.O.
Nonrepeatability	±0.05% R.O.
Creep(5min)	±0.1% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temperature	-10...+40^oC
Operating temperature	-20...+60^oC
Temperature shift zero	±0.03% R.O./^oC
Temperature shift span	±0.02% R.O./^oC
Input resistance	380±30 ohms
Output resistance	350±5 ohms
Insulation resistance	>2000M ohms
Ingress protection	IP62
Material of element	Stainless steel
Cable	Ø2*4000mm 4-core shielded
Wiring code	Compression@ Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal-

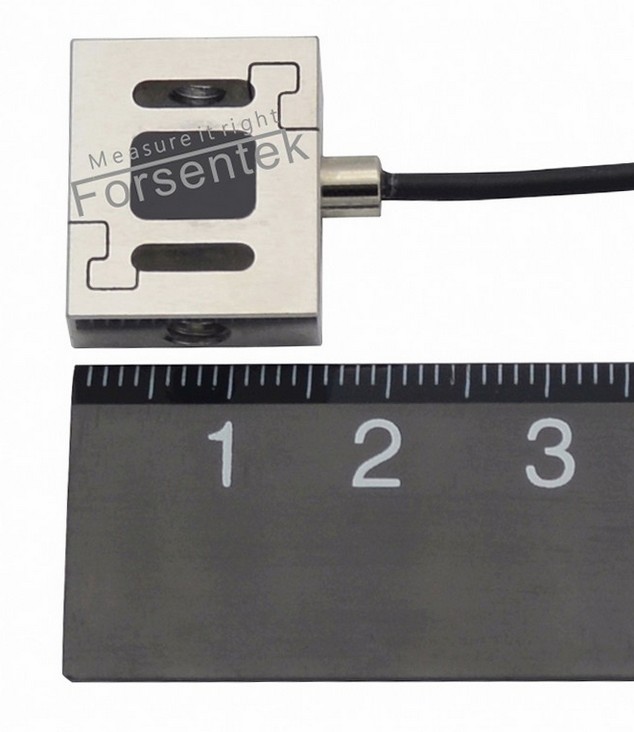

Miniature Tension and compression load cell force sensor FSSM

Miniature force sensor 0-1000N tension compression force transducer

Miniature force transducer for tension compression force measurement
Miniature force sensor 0-1000N tension compression force transducer

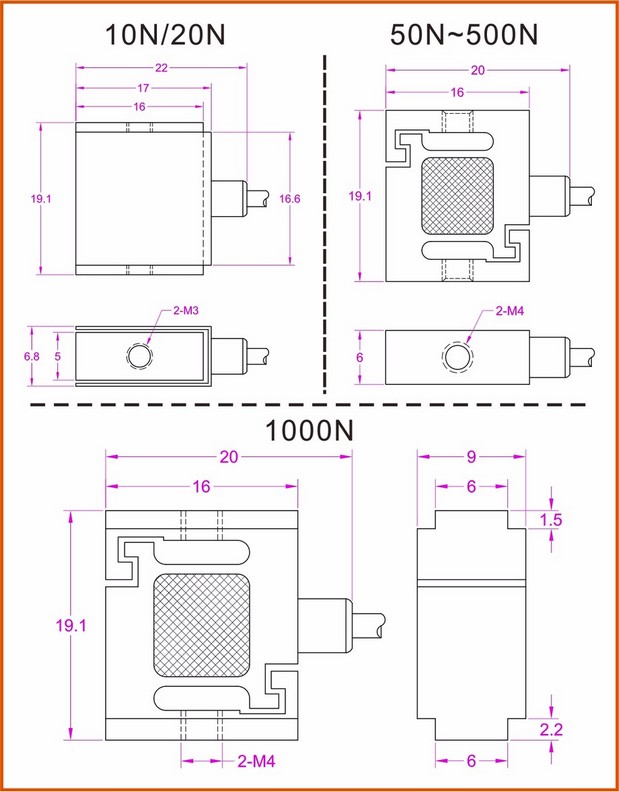

Dimensions(in milimeter)

Ordering Code:
FSSM-10N, FSSM-20N, FSSM-50N, FSSM-100N,
FSSM-200N, FSSM-300N, FSSM-500N, FSSM-1kN

Click here to download datasheet
