Subminiature load button 500N 300N 200N 100N 50N button type load cell

Name: Subminiature load button 500N 300N 200N 100N 50N button type load cell
Brand: Forsentek
Price: 1 USD

Brand Name : Forsentek

Model Number : FC8E

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 2980pcs/month

Delivery Time : 3~20 working days

Packaging Details : Carton

Certification : CE

Usage : Compression force measurement

Type : Micro force sensor

Output : Analog Sensor

Capacity : 50N 100N 200N 500N

Diameter : 8mm

Contact Now

Subminiature load button 500N 200N 100N 50N button type load cell

Subminiature load button 500N 300N 200N 100N 50N button type load cell

Features

Stainless steel construction,ultra small size
Subminiature load cell with 8mm diameter
High output resistance,low heat emission
Compression force measurement

Application

Clamping force measurement
Force overload protection
Load distribution measurement
Pressing die force measurement
Auto equipment
Medical divices
Assembly line

Subminiature load button 500N 300N 200N 100N 50N button type load cell
Specifications

Capacity	50N / 5kg / 11 lb 100N / 10kg / 22lb 200N / 20kg / 44 lb 500N / 50kg / 110lb
Rated output	1.0 mV/V
Excitation	3-8V
Zero balance	±0.1mV/V
Nonlinearity	±1% R.O.
Hysteresis	±1% R.O.
Nonrepeatability	±0.5% R.O.
Creep(5min)	±0.2% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temperature	-10...+40^oC
Operating temperature	-20...+60^oC
Temperature shift zero	±0.05% R.O./^oC
Temperature shift span	±0.05% R.O./^oC
Input resistance	900±100 ohms
Output resistance	900±100 ohms
Insulation resistance	>2000M ohms
Ingress protection	IP64
Material of element	Stainless steel
Cable	Ø2*4000mm 4-core shielded
Wiring code	Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal-

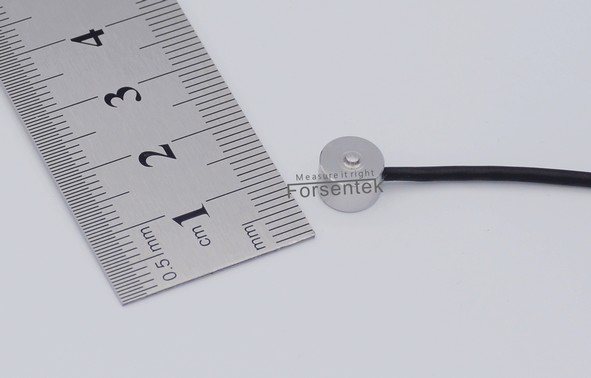

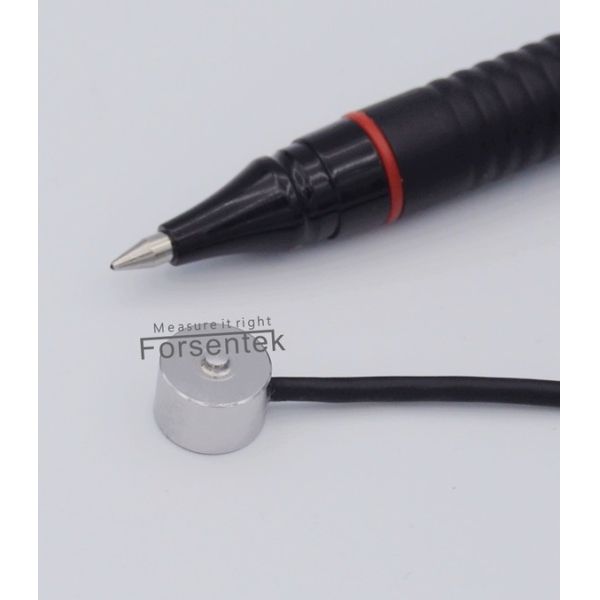

Subminiature load button load cell FC8E is made of stainless steel,compact size with 8mm OD,force is detected through the top button on the center of the load cell,low deformation,high response speed.Miniature button load cell FC8E is a perfect option for industrial applications where space is limited.0-5V/0-10V/4-20mA output is available by working with Forsentek signal conditioner FSC,digital force meter can also be provided to display the applied force value.

Subminiature load button 500N 300N 200N 100N 50N button type load cell

Click here to download datasheet
