50NM motor torque sensor 20NM motor torque measurement 10NM torque transducer

1
2
3
4

China 50NM motor torque sensor 20NM motor torque measurement 10NM torque transducer wholesale

China 50NM motor torque sensor 20NM motor torque measurement 10NM torque transducer wholesale

China 50NM motor torque sensor 20NM motor torque measurement 10NM torque transducer wholesale

China 50NM motor torque sensor 20NM motor torque measurement 10NM torque transducer wholesale

Brand Name : Forsentek

Model Number : FY01

Certification : CE

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 1000pcs/month

Delivery Time : 3~20 working days

Packaging Details : 1pc/box

Usage : Torque test/torque measure

Theory : Strain gauge torque sensor

Output : Analog Sensor

Torque measurement direction : Clockwise&Counterclockwise

Contact Now

50NM motor torque sensor 20NM motor torque measurement 10NM torque transducer

CE certified
Stainless steel measure element,aluminum housing
Shaft to shaft structure,easy to install
Strain gauge technology,analog output
Both clockwise and counterclockwise measurement
Typical applications are motor torque measurement,pump torque measurement,engine testing,test benches,etc..

50NM motor torque sensor 20NM motor torque measurement 10NM torque transducer

Specifications

Capacity	10NM 20NM 30NM 50NM 100NM 200NM 300NM 500NM
Rated output	1.5mV/V
Excitation	3-15V
Zero balance	±2% R.O.
Non-linearity	±0.15% R.O.
Hysteresis	±0.15% R.O.
Non-repeatability	±0.05% R.O.
Creep(5min)	±0.1% R.O.
Safe overload	120% F.S.
Ultimate overload	200% F.S.
Compensated temperature	-10...+40^oC
Operating temperature	-20...+60^oC
Temperature shift zero	±0.01% R.O./^oC
Temperature shift span	±0.01% R.O./^oC
Input resistance	350±30 ohms
Output resistance	350±10 ohms
Insulation resistance	>5000M ohms
Ingress protection	IP50
Material of element	Stainless steel
Cable	Ø5.5*3000mm
Wiring code	Red--E+ Green--E- Yellown--S+ White--S-

50NM motor torque sensor 20NM motor torque measurement 10NM torque transducer

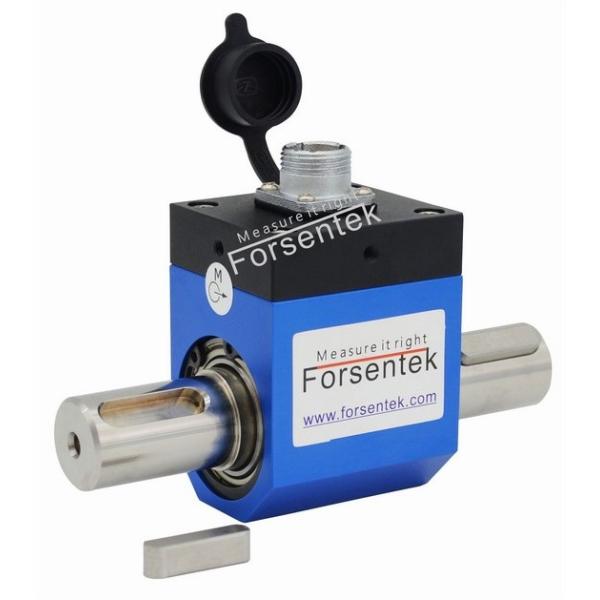

Rotating torque measurement transducer FY01

50NM motor torque sensor 20NM motor torque measurement 10NM torque transducer

Dimensions

50NM motor torque sensor 20NM motor torque measurement 10NM torque transducer
