Multi axis load cell 3kN triaxial force sensor 300kg 3-axis load cell 660lb

Name: Multi axis load cell 3kN triaxial force sensor 300kg 3axis load cell 660lb
Brand: Forsentek
Price: 1 USD

China Multi axis load cell 3kN triaxial force sensor 300kg 3-axis load cell 660lb wholesale

Brand Name : Forsentek

Model Number : F3A/F3B

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 2100pcs/month

Delivery Time : 3-25 business days

Packaging Details : 1pc/box

Certification : CE

Usage : Multi-axis force measurement

Force range : 1000kg 500kg 300kg 200kg 100kg 50kg

Theory : 3 Axis Force Sensor

Output : Analog Transducer

Connection : Flange-to-Flange

Contact Now

Multi axis load cell 3kN triaxial force sensor 300kg 3-axis load cell

Triaxial force sensor F3A is designed to measure force in Fx/Fy/Fz at the same time,each axis is able to measure force in both tension and compression direction.Flange to flange mounting,easy to install.Typical applications for this type of transducer are for example force exertion control in robotics, automotive crash testing, industrial test benches, grinding force control, actuator operating force measurement and so on.

Multi axis load cell 3kN triaxial force sensor 300kg 3-axis load cell 660lb

Specifications

Rated Capacity	50kg / 500N / 110lb 100kg / 1kN / 220lbf 200kg / 2kN / 440lb 300kg / 3kN / 660 lbf 500kg / 5kN / 1100lbf 1000kg / 10kN / 2200 lb
Sensitivity	1.0mV/V
Excitation	3-15V
Zero balance	±0.05mV/V
Non-linearity	±0.5% R.O.
Hysteresis	±0.3% R.O.
Non-repeatability	±0.2% R.O.
Creep(10min)	±0.1% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temperature	0...+40^oC
Operating temperature	-10...+60^oC
Temperature shift on zero	±0.02% R.O./^oC
Temperature shift on span	±0.02% R.O./^oC
Input resistance	Fx/Fy: 380±30 ohms Fz: 710±30 ohms
Output resistance	Fx/Fy: 355±5 ohms Fz: 710±10 ohms
Insulation resistance	>2000M ohms
Ingress protection	IP62
Material of element	<100kg Aluminum alloy >50kg Stainless steel
Cable	F3A: Ø63000mm 8-pin shielded cable (x1) F3B: Ø53000mm 4-pin shielded cable (x3)
Wiring code	4-wire connection for each axis

3 axis load cell 1000kg 500kg 300kg 200kg 100kg 50kg Multi-axis force sensor

Multi axis load cell 3kN triaxial force sensor 300kg 3-axis load cell 660lb

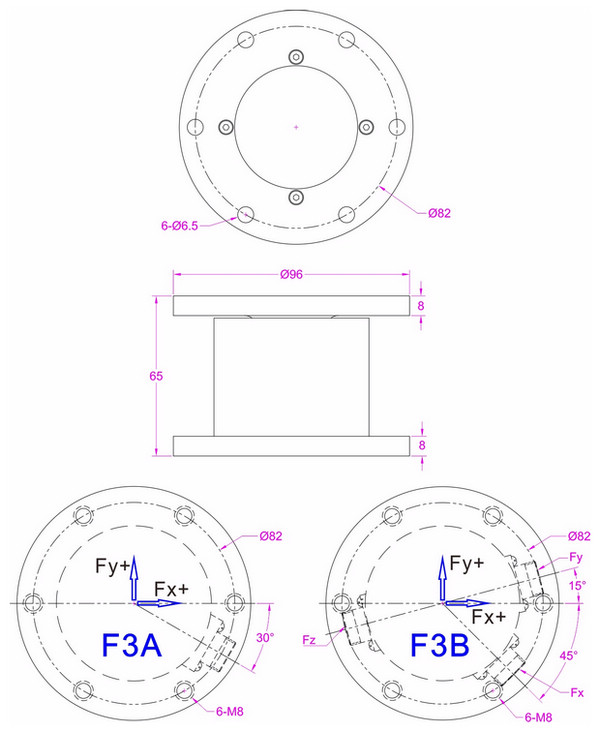

Dimensions(Unit in "mm)

Multi axis load cell 3kN triaxial force sensor 300kg 3-axis load cell 660lb

Click here to download datasheet

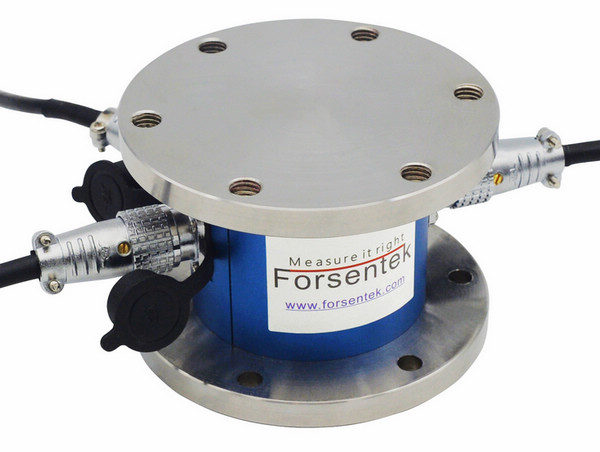

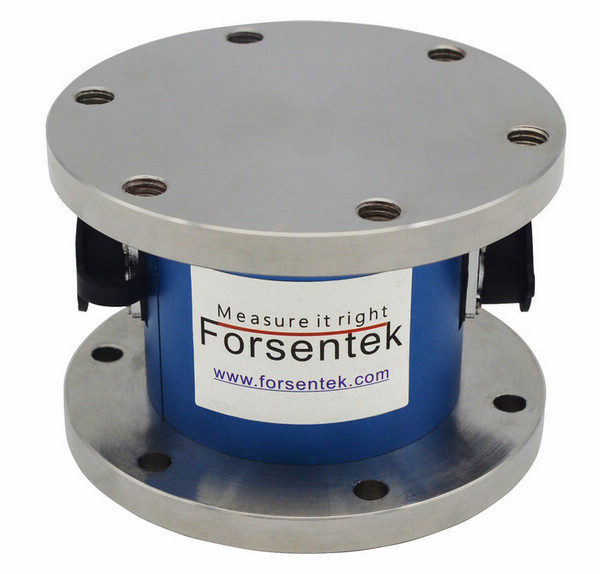

Multi axis load cell 3kN triaxial force sensor 300kg 3-axis load cell 660lb Images
