3 Axis Force Transducer 50N Triaxial Force Sensor 5kg Triaxial Load Cell 10lb

Name: 3 Axis Force Transducer 50N Triaxial Force Sensor 5kg Triaxial Load Cell 10lb
Brand: Forsentek
Price: 396 USD

China 3 Axis Force Transducer 50N Triaxial Force Sensor 5kg Triaxial Load Cell 10lb wholesale

Brand Name : Forsentek

Model Number : FNZ

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 1900pcs/month

Delivery Time : 3 working days

Packaging Details : 1pc/box

Certification : CE

Price : 396usd/pc

Usage : 3 axis force measurement

Capacity : 10N 20N 50N 100N

Type : 3-Axis Force Sensor

Output : Analog Transducer

Load direction : Fx/Fy/Fz

Contact Now

3 axis force transducer 50N triaxial force sensor 5kg triaxial load cell force sensor 10 lb

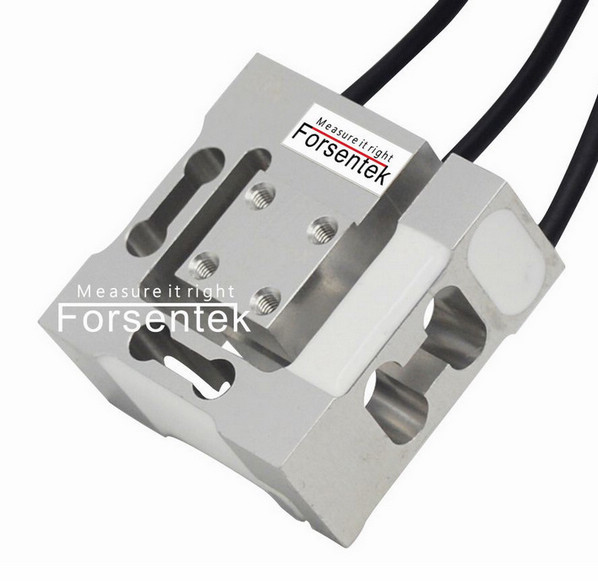

3-axis force transducer FNZ is made of aluminum based on strain gauge technology, tri-axial force sensor FNZ delivers mV/V output for each axis from wheatstone bridge which requires no mathematical manipulation for 3-axis force measurement. Triaxial Load Cell FNZ is available in 0-10N / 0-20N / 0-50N / 0-100N four measuing ranges for all three axes, each axis can be used for both tension and compression force measurement.Compact structure, high accuracy, low crosstalk, competitive price, you may find multi axis force sensor FNZ suitable for applications such as friction force measurement, force control in robotics, force monitoring in handing devices, industrial test benches, etc..

3 Axis Force Transducer 50N Triaxial Force Sensor 5kg Triaxial Load Cell 10lb

Specifications

Capacity	10N / 1kg / 2.2lb 20N / 2kg / 4.4 lb 50N / 5kg / 11lb 100N / 10kg / 22lb
Rated output	1.0mV/V
Excitation	3-12V
Zero balance	±0.1mV/V
Nonlinearity	±0.2% R.O.
Hysteresis	±0.2% R.O.
Nonrepeatability	±0.1% R.O.
Creep(2min)	±0.2% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temperature	0...+25^oC
Operating temperature	-10...+50^oC
Temperature shift zero	±0.05% R.O./^oC
Temperature shift span	±0.01% R.O./^oC
Input resistance	350±50 ohms
Output resistance	350±10 ohms
Insulation resistance	>5000M ohms
Ingress protection	IP62
Material of element	Aluminum alloy
Cable	Ø3*2000mm(for each axis)
Wiring code	Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal-

3 axis force transducer 50N triaxial force sensor 5kg triaxial load cell 10lb

3 Axis Force Transducer 50N Triaxial Force Sensor 5kg Triaxial Load Cell 10lb

Ordering code of 3 axis force transducer FNZ

Part No.	Capacities
Part No.	Fx=Fy=Fz
FNZ-10N	10N
FNZ-20N	20N
FNZ-50N	50N
FNZ-100N	100N

Dimensions(unit in "mm")

3 Axis Force Transducer 50N Triaxial Force Sensor 5kg Triaxial Load Cell 10lb

Click here to download datasheet
