Miniature Force Transducer 2lb 5lb 10lbs 20lbf 40lb Compression Force Measurement

Name: Miniature Force Transducer 2lb 5lb 10lbs 20lbf 40lb Compression Force Measurement
Brand: Forsentek
Price: 1 USD

China Miniature Force Transducer 2lb 5lb 10lbs 20lbf 40lb Compression Force Measurement wholesale

Brand Name : Forsentek

Model Number : FCFK

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 2200pcs/month

Delivery Time : 3~25 working days

Packaging Details : Carton

Certification : CE

Usage : Compression Force Measurement

Capacity : 2lbs 5lb 10lbf 20lb 40lb

Type : Micro Load Cell

Structure : Miniature Column Load Cell

Output : Analog Sensor

Mounting : Flange to flange

Contact Now

Miniature force transducer 2lb 5lb 10lb 20lb 40lb compression force measurement

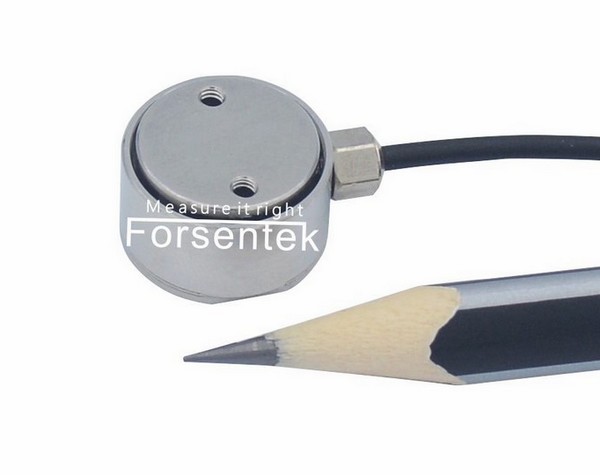

Miniature Force Transducer FCFK is made of stainless steel based on strain gauge technology to deliver maximum 0.3% non-linearity of the rated capacity. Small size flat load cell FCFK offers 0-10N / 0-20N / 0-50N / 0-100N / 0-200N five measuring ranges to choose from,flange to flange mounting, compact design, you may find Micro force sensor FCFK applicable for compression force measurement applications where mounting space is limited, such as fixture clamping force measurement, assembly force monitoring, force distribution test,etc..

Miniature Force Transducer 2lb 5lb 10lbs 20lbf 40lb Compression Force Measurement
Dimensions(in milimeter)

Ordering code	Measurement Range	Force direction
FCFK-10N	0-10N / 0-2.2lb	Compression
FCFK-20N	0-20N / 0-4.4lb
FCFK-50N	0-50N / 0-0-10lb
FCFK-100N	0-100N / 0-20lb
FCFK-200N	0-200N / 0-45lb

Specifications

Capacity	1kg / 2kg / 5kg / 10kg / 20kg 10N / 20N / 50N / 100N / 200N 2.2lbs / 4.4lbf / 11lb / 22lb / 45lb
Rated output	2.0 mV/V
Excitation	3-15V
Zero balance	±0.1mV/V
Nonlinearity	±0.3% R.O.
Hysteresis	±0.3% R.O.
Nonrepeatability	±0.1% R.O.
Creep(5min)	±0.1% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temperature	-10...+40^oC
Operating temperature	-20...+60^oC
Temperature shift zero	±0.03% R.O./^oC
Temperature shift span	±0.03% R.O./^oC
Input resistance	385±50 ohms
Output resistance	350±5 ohms
Insulation resistance	>2000M ohms
Ingress protection	IP50
Material of element	Stainless steel
Cable	Ø2*3000mm 4-core shielded
Wiring code	Red--Excitationi+ Black--Excitation- Green--Signal+ White--Signal-

Miniature Force Transducer 2lb 5lb 10lbs 20lbf 40lb Compression Force Measurement

Click here to download datasheet
