Off-center Load Cell 500kg 350kg 200kg 100kg Platform sizes up to 400x450mm

Name: Offcenter Load Cell 500kg 350kg 200kg 100kg Platform sizes up to 400x450mm
Brand: Forsentek
Price: 1 USD

China Off-center Load Cell 500kg 350kg 200kg 100kg Platform sizes up to 400x450mm wholesale

Brand Name : Forsentek

Model Number : FNN

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 6000pcs/month

Delivery Time : 3~25 working days

Packaging Details : Carton

Certification : CE

Usage : Weight Measurement Transducer

Capacity : 60kg 100kg 200kg 350kg 500kg

Type : Off Center Load Cell

Output : Analog Sensor

Structure : Parallel Beam Loadcell

Contact Now

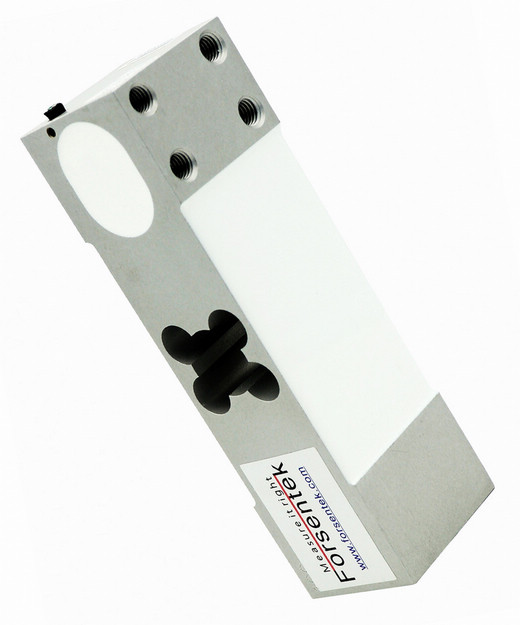

Off-center load cell 500kg 350kg 200kg 100kg platform sizes up to 400x450mm

Off center load cell FNN utilizes strain gauge technology to deliver high accuracy of maximum 0.015% non-linearity of the full scale. Load sensor FNN offers 60kg / 100kg / 200kg / 350kg / 500kg five rated capacities to choose from. Weight transducer FNN is corner trimmed for platform sizes up to 40x50cm,which makes weight sensor FNN suitable for platform weighing applications where off-center loading exists.Weight Transducer FNN is temperature compensated to deliver stable measuring results within its working temperature range.You may find beam type load cell sensor FNN applicable for packing machines, bench scales, feeding machines, beehive scales and so on.

Off-center Load Cell 500kg 350kg 200kg 100kg Platform sizes up to 400x450mm

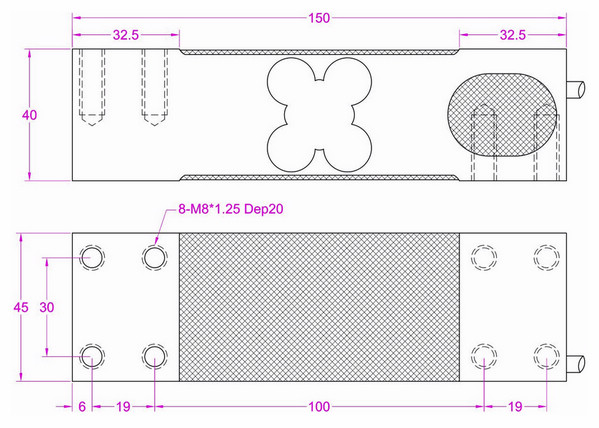

Dimensions

Off-center Load Cell 500kg 350kg 200kg 100kg Platform sizes up to 400x450mm

Specifications

Capacity	60kg / 600N / 132 lbf 100kg / 1kN / 220lb 200kg / 2kN / 440 lbf 350kg / 3.5kN / 770lb 500kg / 5kN / 1.1k lbf
Rated output	2.0 mV/V
Excitation	3-15V
Zero balance	±0.1mV/V
Nonlinearity	±0.015% R.O.
Hysteresis	±0.015% R.O.
Nonrepeatability	±0.01% R.O.
Creep(30min)	±0.02% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temperature	-10...+40^oC
Operating temperature	-20...+60^oC
Temperature shift zero	±0.02% R.O./10^oC
Temperature shift span	±0.02% R.O./10^oC
Input resistance	405±10 ohms
Output resistance	350±3 ohms
Insulation resistance	>5000M ohms
Ingress protection	IP65
Material of element	Aluminum alloy
Cable	Ø5*1500mm 4-core
Wiring code	Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal-

Off-center load cell 500kg 350kg 200kg 100kg platform sizes up to 400x450mm

Off-center Load Cell 500kg 350kg 200kg 100kg Platform sizes up to 400x450mm

Click here to download datasheet
