Miniature Thin Load Cell 100kg 50kg 20kg 10kg 5kg Low Profile Weight Sensor

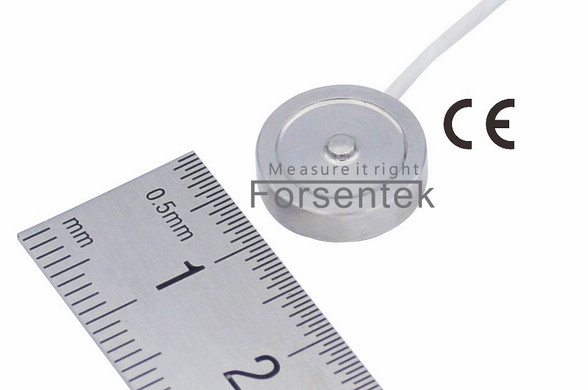

Ultra Thin Compression Load Cell Force Sensor FCCK is made of stainless steel based on strain gauge technology, very compact size with 12.7mm outer diameter and 3.95mm height which makes miniature force transducer FCCK suitable for compression force measurement applications with limited mounting space.Low Profile Load Cell FCCK offers 100kg / 50kg / 20kg / 10kg / 5kg five rated capacities to choose from. Model FCCK utilizes 1000 ohms bridge resistance for lower heat emission and better stability, you may find Subminiature Load Cell FCCK suitable for applications such as clamping force measurement, force overload protection, load distribution measurement, pressing die force measurement, auto equipment, medical divices, assembly line,etc.. Custom made service is available for similar structures with different measuring ranges.

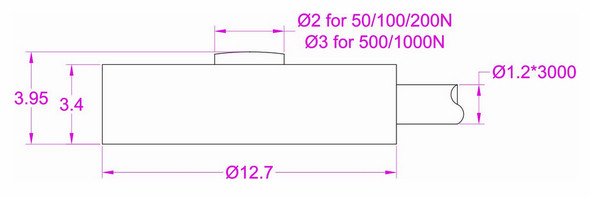

Dimensions(unit in "mm")
Specifications
| Capacity | 50N / 5kg / 11 lb
100N / 10kg / 22lb
200N / 20kg / 44 lbf
500N / 50kg / 110 lb
1kN / 100kg / 220lbf |
| Rated output | 1.5mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±2% R.O. |
| Hysteresis | ±2% R.O. |
| Nonrepeatability | ±0.5% R.O. |
| Creep(3min) | ±0.5% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.05% R.O./oC |
| Temperature shift span | ±0.05% R.O./oC |
| Input resistance | 1000±100 ohms |
| Output resistance | 1000±100 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP65 |
| Material of element | Stainless steel |
| Cable | Ø1.2*3000mm 4-conductor |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
Miniature Low Profile Load Cell 100kg 50kg 20kg 10kg 5kg For Compression Force Measurement
Brief instruction of Rated output(or Sensitivity):
Definition: The signal produced by load cell(or force transducer) when rated load is applied, expressed in terms of mV/V. The rated output indicates the output signal range of a sensor.
Sensor output = (Power supply * Rated output) * Load / Capacity
Rated output is normally within 1mV/V~3mV/V.
Power supply is normally within 3-15V.
Load / Capacity is within 0-1.
So the load cell output signal is normally within 0-45mV(-45mV...+45mV for bidirectional load cell).
Example one: FCCK-500N with 1.5mV/V power by 3.3V DC,the output range is 0~4.95mV proportional to the applied load.
Example two: FCCK-200N with 1.6mV/V power by 5V DC,the output range is 0~8mV proportional to the applied load.
Load cell + Signal amplifier:
Load cell normally outputs -30mV...+30mV which sometimes cannot be recognized by signal processing units directly,so signal conditioner is introduced to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example: Force transducer FCCK-50N working with 0-10V amplifier,the load-output relationship will be 0-50N load VS 0-10V output.
Click here to download datasheet
|
|
