Button Type Load Cell 220lb 110lb 45lb 20 lb 10 lb Thin Compression Force Transducer

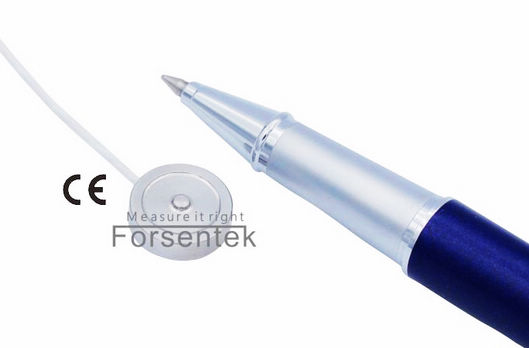

Ultra Thin Compression Load Cell Force Sensor FCCK is made of stainless steel based on strain gauge technology, very compact size with 12.7mm outer diameter and 3.95mm height which makes miniature force transducer FCCK suitable for compression force measurement applications with limited mounting space.Low Profile Load Cell FCCK offers 220lb / 110lb / 44lb / 22lb / 11lb five rated capacities to choose from. Model FCCK utilizes 1000 ohms bridge resistance for lower heat emission and better stability, you may find Subminiature Load Cell FCCK suitable for applications such as clamping force measurement, force overload protection, load distribution measurement, pressing die force measurement, auto equipment, medical divices, assembly line,etc.. Custom made service is available for similar structures with different measuring ranges.
Dimensions(unit in "mm")
Specifications
| Capacity | 50N / 5kg / 11 lb
100N / 10kg / 22lb
200N / 20kg / 44 lbf
500N / 50kg / 110 lb
1kN / 100kg / 220lbf |
| Rated output | 1.5mV/V |
| Excitation | 3-12V |
| Zero balance | ±0.1mV/V |
| Nonlinearity | ±2% R.O. |
| Hysteresis | ±2% R.O. |
| Nonrepeatability | ±0.5% R.O. |
| Creep(3min) | ±0.5% R.O. |
| Safe overload | 150% F.S. |
| Ultimate overload | 200% F.S. |
| Compensated temperature | -10...+40oC |
| Operating temperature | -20...+60oC |
| Temperature shift zero | ±0.05% R.O./oC |
| Temperature shift span | ±0.05% R.O./oC |
| Input resistance | 1000±100 ohms |
| Output resistance | 1000±100 ohms |
| Insulation resistance | >2000M ohms |
| Ingress protection | IP65 |
| Material of element | Stainless steel |
| Cable | Ø1.2*3000mm 4-conductor |
| Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
Button Type Load Cell 220 lb 110 lb 45 lb 20lb 10lb Thin Compression Force Transducer
Brief instruction of Rated output(or Sensitivity):
Definition: The signal produced by load cell(or force transducer) when rated load is applied, expressed in terms of mV/V. The rated output indicates the output signal range of a sensor.
Sensor output = (Power supply * Rated output) * Load / Capacity
Rated output of button load cell FCCK is normally within 1.5mV/V.
Power supply of miniature compression force sensor FCCK is normally within 3-12V.
Load / Capacity is within 0-1.
So the output range of compression force transducer FCCK is normally within 0-18mV.
Example one: FCCK-500N with 1.5mV/V rated output powered by 3.3V DC,the output range is 0~4.95mV proportional to the applied load.
Example two: FCCK-200N with 1.6mV/V sensitivity powered by 5V DC,the output range is 0~8mV proportional to the applied load.
Load cell + Signal amplifier:
A signal conditioner is introduced to convert mV signal into 0-5V/0-10V/4-20mA for easy signal processing.
Example: Miniature force transducer FCCK-500N working with 0-10V amplifier,the load-output relationship will be 0-500N load VS 0-10V output.
