Place of Origin : China
Brand Name : Forsentek
Model Number : FC50
Delivery Time : 3~25 working days
Payment Terms : T/T,Western Union or Paypal
Supply Ability : 2200pcs/month
MOQ : 1pc
Packaging Details : Carton
Certification : CE
Usage : Compression Force Measurement
Force range : 1kN 2KN 5kN 10kN 20kN 50kN 100kN
Type : Button Load Cell 2000kg
Output : Analog Sensor

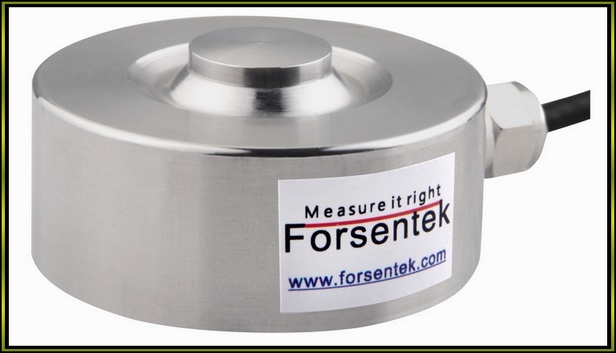

2t Compression Load Cell 2000kg Compression Force Sensor 20KN
Features
Application
Dimensions
Specifications
Capacity | 100kg / 1kN / 220lb 200kg / 2kN / 450lb 500kg / 5kN / 1.12klb 1ton / 10kN / 2.25klb 2ton / 20kN / 4.5klb 5ton / 50kN / 11.2klb 10ton / 10kN / 22.5klb |
Rated output | 1.5mV/V |
Excitation | 3-15V |
Zero balance | ±0.05mV/V |
Nonlinearity | ±0.3% R.O. |
Hysteresis | ±0.3% R.O. |
Nonrepeatability | ±0.1% R.O. |
Creep(5min) | ±0.1% R.O. |
Safe overload | 150% F.S. |
Ultimate overload | 200% F.S. |
Compensated temperature | -10...+40oC |
Operating temperature | -20...+60oC |
Temperature shift zero | ±0.02% R.O./oC |
Temperature shift span | ±0.02% R.O./oC |
Input resistance | 385±30 ohms |
Output resistance | 350±5 ohms |
Insulation resistance | >5000M ohms |
Ingress protection | IP66 |
Material of element | Stainless steel |
Cable | Ø4*4000mm 4-core shielded cable |
Wiring code | Red--Excitation+ Black--Excitation- Green--Signal+ White--Signal- |
2t Compression Load Cell 2000kg Compression Force Sensor 20KN
Ordering code: FC50-1kN, FC50-2kN, FC50-5kN, FC50-10kN, FC50-20kN, FC50-50kN, FC50-100kN
Click here to download datasheet
![]() |
