Name: Hand grip force measurement grip strength test measuring hand grip strength
Brand: Forsentek
Price: 1 USD

Brand Name : Forsentek

Model Number : FFK

Place of Origin : China

MOQ : 1pc

Payment Terms : T/T,Western Union or Paypal

Supply Ability : 5000pcs/month

Delivery Time : 3-25 working days

Packaging Details : Carton

Usage : Hand grip force measurement

Theory : Strain gauge force sensor

Output : Analog Sensor

Capacity : 50N 100N 300N 500N 1kN

Contact Now

Hand grip force measurement grip strength test

measuring hand grip strength

Hand grip force measurement grip strength test measuring hand grip strength

Features

Hand grip force measurement grip strength test measuring hand grip strength

Specifications

Capacity	50N 100N 300N 500N 1kN
Rated output	2.0 mV/V
Excitation	3-15V
Zero balance	±2% R.O.
Nonlinearity	±0.3% R.O.
Hysteresis	±0.3% R.O.
Nonrepeatability	±0.2% R.O.
Creep(10min)	±0.1% R.O.
Safe overload	150% F.S.
Ultimate overload	200% F.S.
Compensated temperature	-10...+40^oC
Operating temperature	-20...+60^oC
Temperature shift zero	±0.02% R.O./^oC
Temperature shift span	±0.02% R.O./^oC
Input resistance	385±30 ohms
Output resistance	380±30 ohms
Insulation resistance	>2000M ohms
Ingress protection	IP50
Material of element	Sensor body: Alloy steel Housing: Aluminum alloy
Cable	Ø3*2000mm
Wiring code	Red--E+ Black--E- Green--S+ White--S-

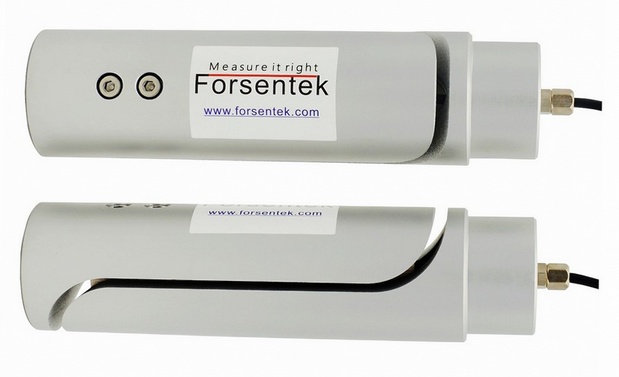

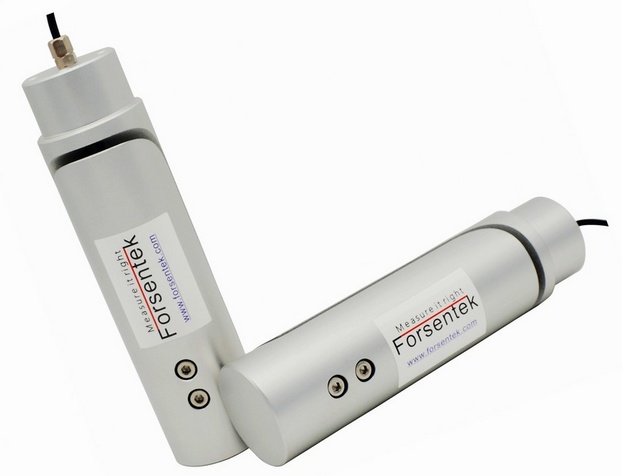

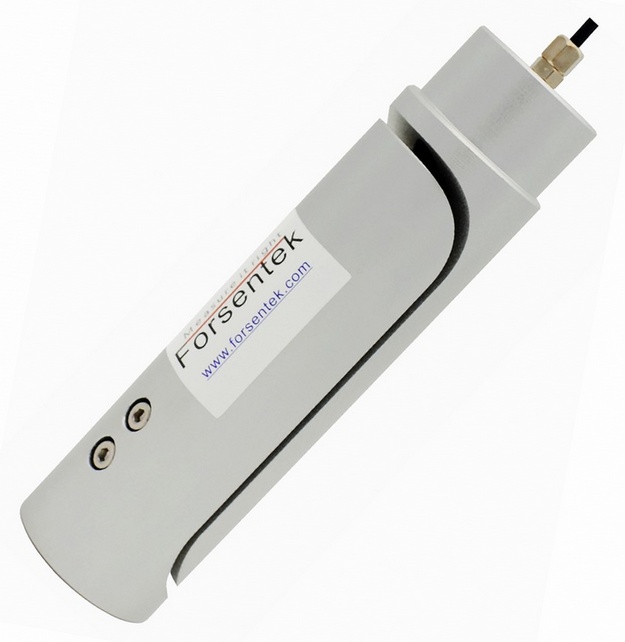

Grip strength transducer for handgrip strength test

Hand grip force measurement grip strength test measuring hand grip strength
